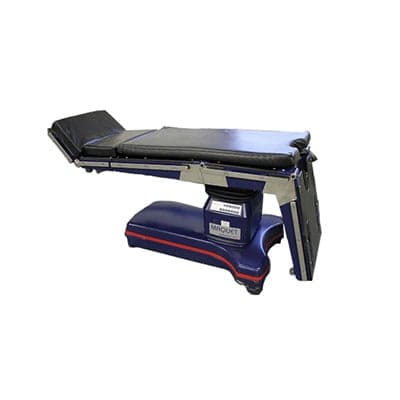

Maquet Alphastar Surgical Table

Product Description

The Maquet AlphaStar surgical table, with an electrically controlled hydraulic drive, provides essential table functions from tabletop positioning and auto-drive to reverse mode. AlphaStar can be modified to suit the needs of any surgical discipline in just a few quick steps. Ideal for smooth workflow in the operating room. Electrically controlled hydraulic drive for all the table’s essential functions Mounting point allows the quick use of a broad range of socket-mounted modules Back-lit key panel considerably simplifies the work in the dark MIC room.

Technical Specification

Adjustment Options

Height without padding

• 1132.11 27.0″ – 44.3″ (685 – 1125 mm)
• 1132.12 23.5″ – 37.4″ (598 – 950 mm)
• 1132.13 27.0″ – 42.1″ (685 – 1070 mm)

Dimensions

• Length without a head plate and extension plates 51.2″ (1300 mm)
• Length with a head plate and extension plates 82.5″ (2095 mm)
• Width 20.5″ (520 mm)
• Width across side rails 23.2″ (590 mm)

Weights

• Operating table weight 300 kg / 660 lbs
• Maximum permissible overall load 270 kg / 600 lbs(patient weight and accessories)

Tilting Features

• Trendelenburg: +30°/-30°
• Lateral tilt left/right: 18°/18°
• NORMAL Backplate: +68°/-25°
• Legplates: +80°/-105°
• 0-Position: (resetting adjustments such as Trendelenburg / reverse Trendelenburg, lateral tilt, back plate, and leg plates.)

Additional Features

• Base braking: (lock/unlock.)
• Patient Orientation: (normal/reverse.)
• Autodrive in the base.
• (Equipment option in conjunction with the corded hand control.)
